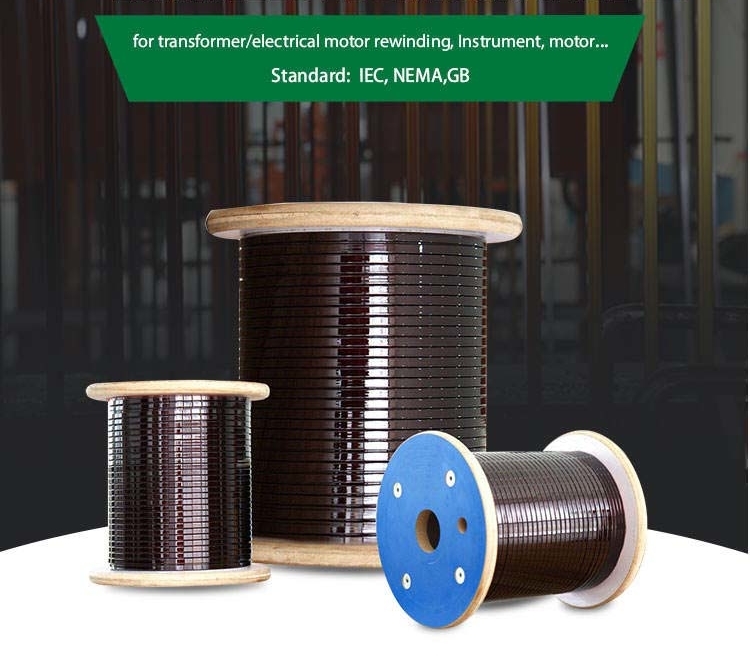

Enameled Aluminum Wire

  • GB/T6109, IEC 60317-0-1, GB5584.3-2009, etc.

  • Aluminum & Copper

  • 0.7 ~ 10mm(flat), 0.8 ~ 6.5mm(round)

  • 2.0 ~ 38mm

PRODUCT INQUIRY

Enameled aluminum wire is one of the main types of winding wire, which is composed of a conductor and an insulating layer. After the bare wire is softened by annealing, it is painted and baked many times. The insulation materials mainly include UEW, PEW and AIW, the temperature class 130℃, 155℃, 180℃, 200℃, 220℃ and 240℃. The color is natural and beautiful.

Specification Production & Package

Standard

GB/T6109, IEC 60317-0-1, GB5584.3-2009, etc.

Conductor

Aluminum

Size

Round Wire:

0.8 ~ 6.5mm

Flat Wire:

Thickness: 0.7 ~ 10mm, Width: 2.0 ~ 38mm

Thermal Class

130℃, 155℃, 180℃, 200℃, 220℃, 240℃

Enamel Type

PEW, EIW, PE/AIW, EV/AIW

Insulation Thickness

Grade 1/2/3/4

Packing

30kg~150kg ply-wood spool(250*400/250*500/250*600), or as per request



Type

Polyester

Modified Polyester

Polyurethane

Polyesterimide

Polyamideimide

Polyamide

Code

PEW, QZ

PEW, QZ

UEW, QA

EIW, QZY

EI/AIW, QZY/XY

AIW, QXY

Thermal Class

Class B

130℃

Class F

155℃

Class F

155℃

Class H

180℃

Class H

200℃

Class L

220℃

Insulation

Thickness

Grade 1, 2, 3, 4

Standard

IEC 60317, NEMA MW, JIS

Characteristics

Good heat resistance and mechanical strength.
Low cost.

High mechanical strength, good elasticity, scratch resistance, adhesion, electrical properties and solvent resistance

Solderability(no need to remove the insulation).
High frequency resistance and dyeability

Good thermal shock resistance and refrigerant resistance.
Excellent chemical resistance, abrasion resistance

More comprehensive performance, with high heat resistance, mechanical properties, refrigerant resistance and chemical resistance

Highest heat class
High heat resistance, good solvent and refrigerant resistance


Manufacturing Process

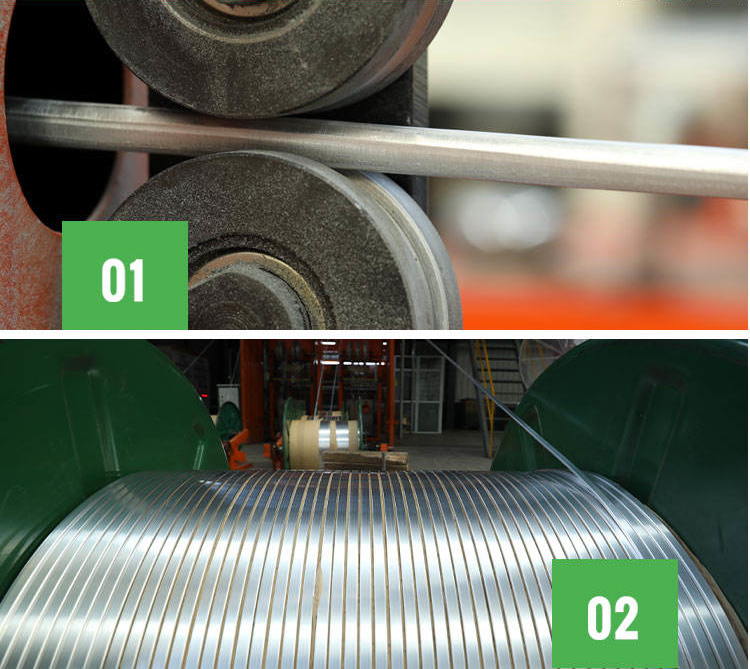

01 Stretching and squeezing aluminum conductor into require diameters, round or flat, by enameled wire machine.

生产工艺流程 1.jpg

02 Suitable aluminum wire conductor is painted by insulation materials.

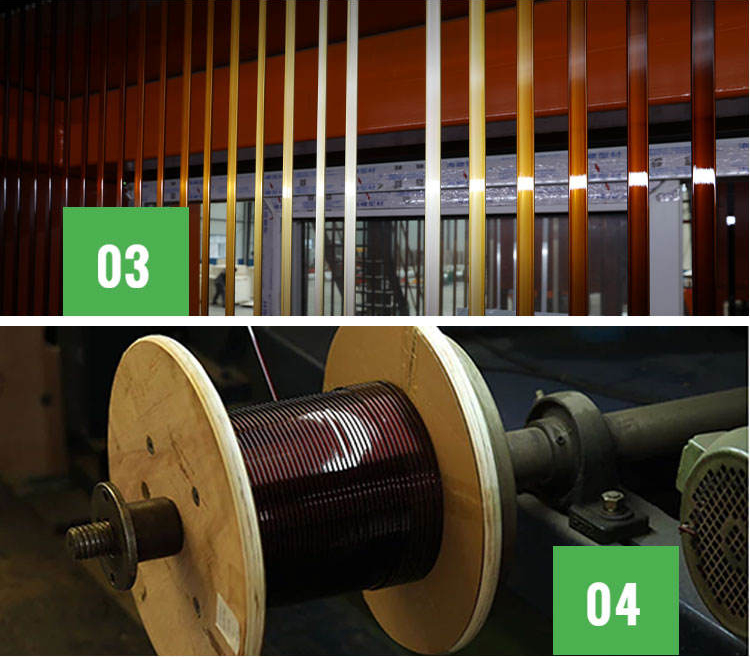

03 Forced air cooling improves the quality of enameled wire. Use a blower to cool the wire in countercurrent through the air duct and cooler. The air source must be used after purification to avoid blowing impurities and dust on the surface of the enameled wire.

生产工艺流程 2.jpg

04 The purpose of receiving and arranging the wire is to continuously, tightly and evenly wind the enameled wire onto the spool.



Applications

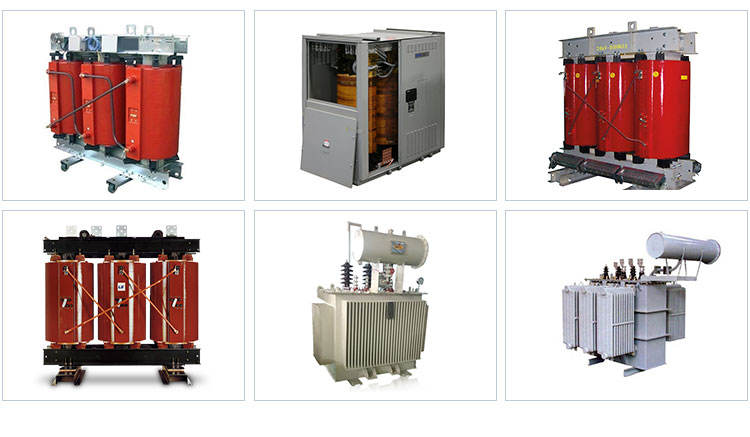

* Microwave transformers;

* Windings with light weight, high conductivity, good heat resistance; Winding used for high frequency signal transmission

* Magnetic wire used in High Frequency transformer, common transformer, inductance coils, electromotors, household electromotors and micro-motors;

* Enamelled wire used in small-motor rotor winding .etc.

* Magnet wires used in monitor deflection coil;

* Magnet wires used in degaussing coil;

* Other special magnet wire.

Application 下.jpg

Productions

China Metal Group provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.


生产工艺流程 1.jpg

生产工艺流程 2.jpg


Package

The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.

1) Our Standard Seaworthy Packing.

2) According to customer request.
